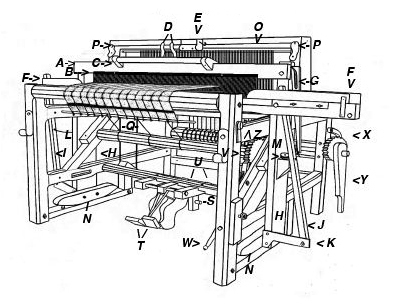

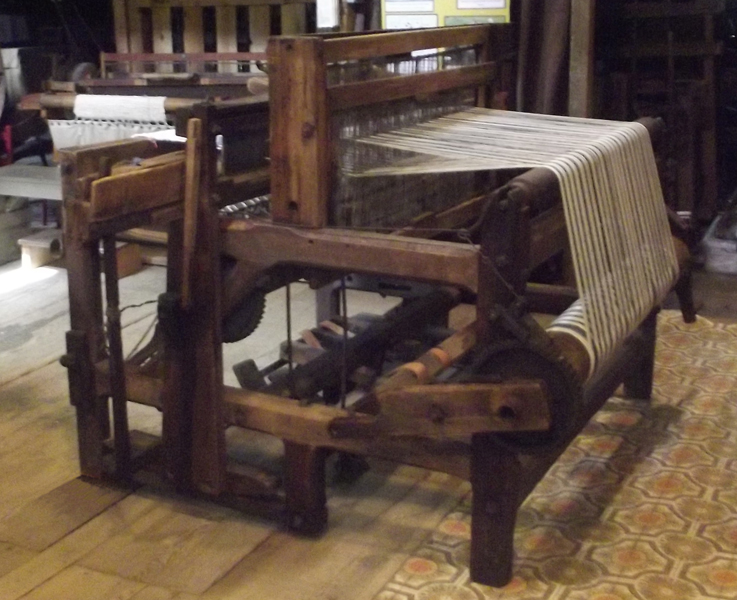

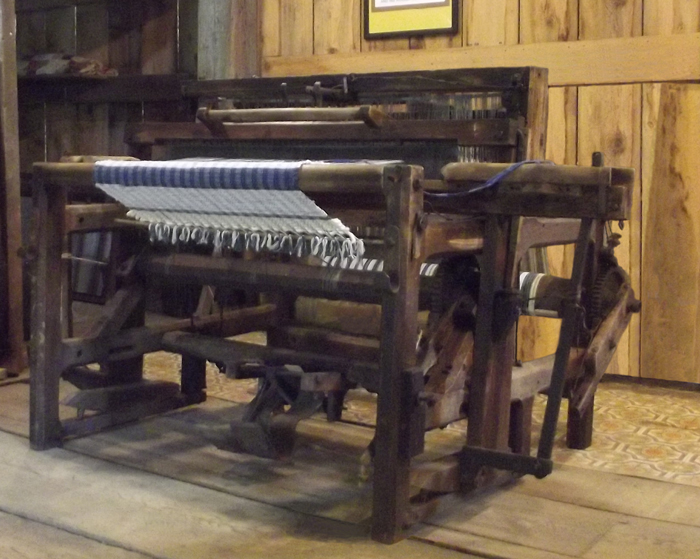

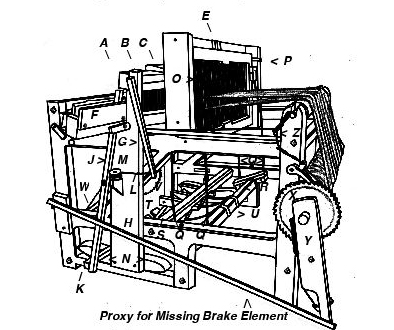

Due to the complexity and rarity of this loom style, this page includes a list of the Fly Shuttle Rocker Beater Loom's mechanical systems and components, and sketches detailing the location of the individual components.
Mechanical Systems and Components
Beating-Up System:         A    Beater Frame (upper portion)         B    Reed         C    Hand Rail         D    Strike Levers         E    Strike Block         F    Shuttle Box         G    Trigger Stick         H    Beater Frame (lower portion)         I     Picker Stick (in cocked position)         J    Picker Stick (in spent position)         K    Hinge Bar         L    Picker Strap         M    Picker Strap Pulley         N    Offset Rocker (peg and hole variety)	Shedding System:     O    Heddle Frames and Heddles     P    Toggle Switch with wire to Strike Block     Q    Conecting Rods (link heddle frames to pivot beam)     R    Pivot Beam (linking various components)     S    Treadle Beam and Brace     T    Treadles     U    Treadle Straps (link treadles to pivot beam) Braking System:     V    Cloth Beam Pawl & Ratchet     W    Cloth Beam Brake Lever & Ratchet     X    Warp Beam Pawl & Ratchet     Y    Warp Beam Brake Lever & Ratchet     Z    Warp Beam Brake Release Wire and Mechanism                (wire runs full length of loom, from front to back)
